DJI Dock 3 Autonomous Docking Station for Matrice 3D/3TD

The DJI Dock 3 is a state-of-the-art autonomous docking station designed to maximize the efficiency, safety, and operational capabilities of your Matrice 4 series drones. Built to accommodate one drone at a time, the Dock 3 combines robust construction with advanced environmental protection, allowing drones to operate in challenging conditions ranging from -30° to 50° C and wind speeds up to 12 m/s. With integrated RTK base station support, high-precision positioning, and rapid charging capabilities, the Dock 3 ensures drones are always mission-ready. Its IP56-rated enclosure, built-in air conditioning system, and backup power supply make it ideal for long-term, autonomous operations in industrial, surveying, and inspection applications.

Centimeter-Level RTK Precision for Reliable Operations The DJI Dock 3 comes equipped with a high-performance RTK base station that supports multiple satellite systems including GPS, BeiDou, GLONASS, Galileo, and QZSS. This ensures centimeter-level positioning accuracy—horizontal accuracy of 1 cm + 1 ppm and vertical accuracy of 2 cm + 1 ppm—allowing your Matrice 4 series drones to perform highly precise inspections, mapping, and surveying missions. Whether operating in industrial zones, construction sites, or remote environments, this precision guarantees that your drone’s data is consistently accurate and reliable.

With a 35 V DC output, the Dock 3 can charge a drone from 15% to 95% in just 27 minutes under standard conditions (25° C). This fast-charging capability reduces downtime between missions, enabling multiple consecutive flights and maximizing productivity. By maintaining optimal battery performance during charging, it ensures longer battery life and consistent energy delivery for professional operations.

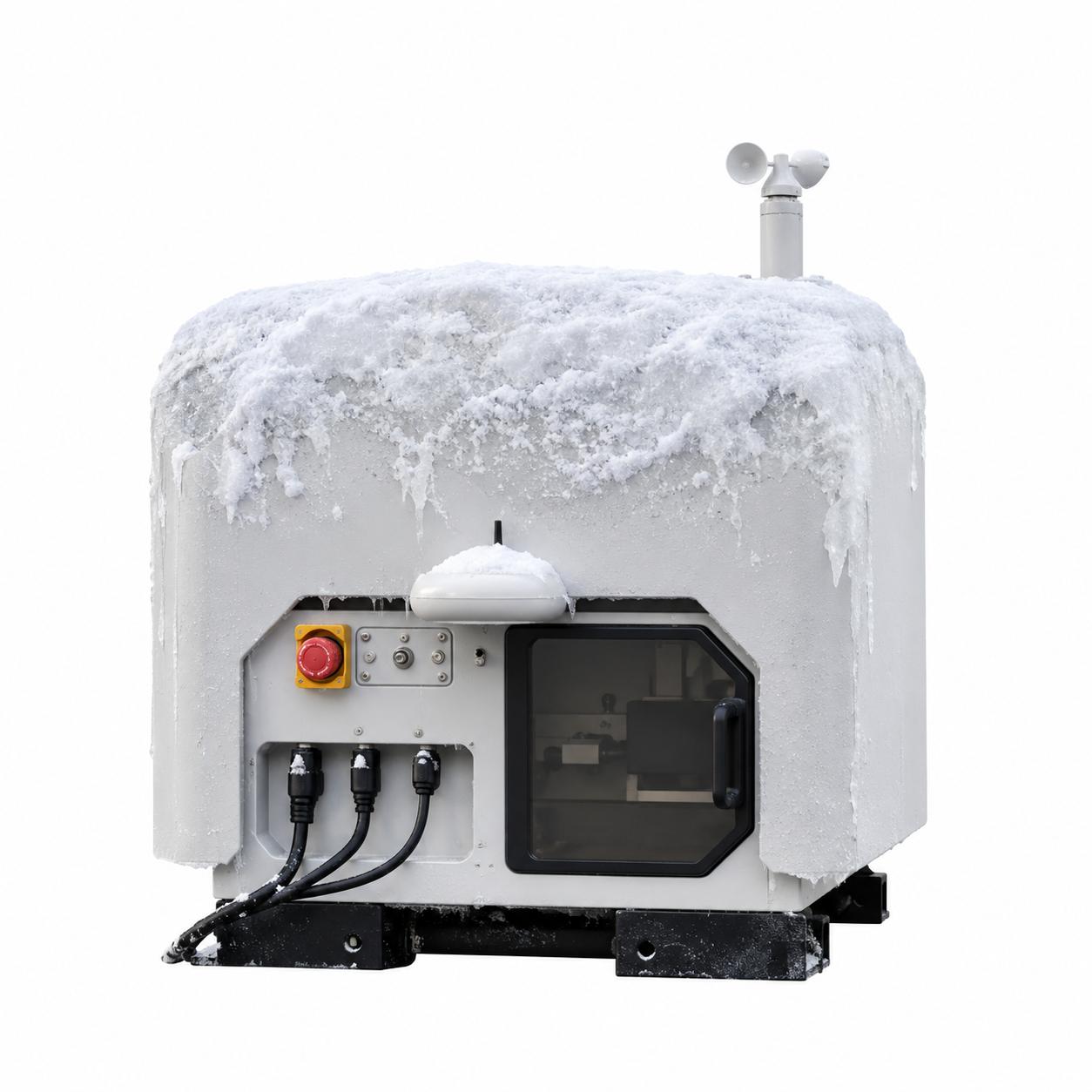

The dock features an IP56-rated enclosure that safeguards your drone against dust, rain, and other harsh environmental conditions. Coupled with a built-in compressor-based air conditioning system operating at 48 V DC, the Dock 3 maintains a stable internal environment to protect batteries and drone components. This makes it suitable for extreme temperatures ranging from -30° to 50° C, allowing safe, autonomous operations in nearly any outdoor environment.

With support for multiple frequency bands—2.400–2.4835 GHz, 5.150–5.250 GHz, and 5.725–5.850 GHz—and 9 built-in antennas featuring intelligent switching (2T4R), the Dock 3 ensures uninterrupted and high-quality video transmission. Operators can rely on consistent live feeds, even in challenging terrain or urban areas with interference, ensuring effective mission monitoring and decision-making.

The Dock 3 comes with a 12 Ah lead-acid backup battery capable of providing more than 4 hours of power. This ensures the dock remains operational during temporary power outages, preventing mission delays and safeguarding your drone while it is docked. This backup system is critical for remote or industrial sites where power stability is not guaranteed.

Weighing 55 kg without the drone, the Dock 3 is built from high-quality materials to withstand industrial-grade usage. Its design accommodates one drone with ample space for safe landing, takeoff, and storage. The dock’s dimensions, whether the cover is open (1760×745×485 mm) or closed (640×745×770 mm), provide optimal balance between operational capacity and portability.

The dock supports operation at altitudes up to 4500 m and allows safe landings in winds up to 12 m/s. This versatility ensures that your Matrice 4 series drones can operate reliably in high-altitude locations or challenging outdoor environments, from mountainous regions to coastal areas.

The Dock 3 supports Ethernet connections at 10/100/1000 Mbps and optional 4G access via the DJI Cellular Dongle 2 (sold separately). This enables remote management, mission planning, and monitoring from virtually anywhere, giving operators full control over drone operations even from a distance.

Specifically designed for DJI Matrice 4TD/4D and Matrice 4T/4E drones, the Dock 3 provides precise landing guidance, fast charging, and reliable integration with the aircraft’s systems. This ensures smooth autonomous missions and optimal performance without compatibility concerns.

Setting Up the Dock Place the DJI Dock 3 on a flat, stable surface capable of supporting its weight of 55 kg without aircraft. Ensure the dock is positioned in an area free from heavy wind, obstructions, and extreme temperatures to maintain optimal drone performance. Open the dock cover (1760×745×485 mm) and verify all internal components are correctly aligned before flight operations. Connecting Power and Network Connect the dock to an AC power source within the range of 100-240 V, 50/60 Hz. Ensure the input power does not exceed 800 W. For network connectivity, use the Ethernet port (10/100/1000 Mbps) or enable 4G with a DJI Cellular Dongle 2 (sold separately) to integrate with your fleet management system. Drone Placement and Takeoff The dock accommodates one drone at a time. Carefully place your compatible drone (Matrice 4TD/4D, 4T/4E) inside the dock. Use the built-in RTK Base Station for precise positioning, ensuring satellite connections with GPS, BeiDou, GLONASS, Galileo, or QZSS are stable before initiating takeoff. Monitoring Operations Use the dock’s intelligent antenna system (9 antennas, 2T4R) to maintain stable video transmission across 2.4 GHz, 5.2 GHz, and 5.8 GHz frequency bands. The dock will handle automatic switching between antennas for uninterrupted connectivity. Check real-time flight and charging status via the DJI management interface. Charging the Drone The DJI Dock 3 provides 35 V DC output for fast charging. A drone can charge from 15% to 95% in approximately 27 minutes at 25° C. Once fully charged, the dock can keep drones ready for rapid deployment, ensuring minimal downtime between flights.

Regular Cleaning Keep the dock exterior and interior free of dust and debris. Use a soft, dry cloth to wipe surfaces, avoiding liquid cleaners that may damage electronics or the air conditioning system. Inspect for Wear and Tear Periodically inspect power connections, Ethernet ports, and antennas for any signs of corrosion or damage. Replace worn components promptly to ensure safe and efficient operations. Air Conditioning Maintenance Check the compressor-based air conditioning system (48 V DC) regularly to ensure proper cooling. Clean air filters and vents to maintain optimal temperature control inside the dock. Backup Battery Care Maintain the 12 Ah lead-acid backup battery. Regularly check voltage output (12 V) and ensure the battery is charged and in good condition to provide more than 4 hours of power during outages. Environment Control Operate the dock within its temperature range of -30° to 50° C (-22° to 122° F). Avoid exposure to extreme heat or cold for prolonged periods, which could reduce the dock’s lifespan and efficiency.

IP56 Dust and Water Protection The DJI Dock 3 is built to endure harsh outdoor environments with an IP56 rating, providing strong protection against dust particles and water ingress. This ensures that the internal electronics and charging systems remain safe even during unexpected rain, dusty conditions, or high-humidity environments. You can confidently operate the dock in challenging weather without worrying about system failures. Precision RTK Positioning Equipped with a high-performance RTK Base Station, the dock offers centimeter-level positioning accuracy: Horizontal: 1 cm + 1 ppm, Vertical: 2 cm + 1 ppm. This ensures extremely precise landings and takeoffs, eliminating the risk of misalignment during automated drone operations. It is particularly critical for industrial applications like surveying, inspection, and mapping where precision is non-negotiable. Wind and Altitude Safety Management The dock can accommodate drone landings in wind speeds up to 12 m/s and operate safely at altitudes up to 4500 m. These built-in operational limits protect your drones from environmental hazards, helping prevent accidents caused by sudden gusts or high-altitude turbulence. Backup Battery for Power Continuity A 12 Ah lead-acid backup battery ensures uninterrupted power for more than four hours in case of main power loss. This safety measure protects drones during charging cycles and avoids abrupt shutdowns that could damage batteries or interrupt critical flight operations. Controlled Charging and Temperature Management The dock’s 35 V DC charging system is carefully regulated to prevent overcharging, overheating, or battery damage. Coupled with the compressor-based air conditioning system, it maintains optimal internal temperatures, safeguarding both drones and the dock itself. Operators can trust the dock to charge drones safely and efficiently every time. Built-In Intelligent Antenna Switching With 9 built-in antennas using 2T4R intelligent switching, the dock ensures stable communication between the drone and remote systems. By automatically adjusting antenna usage to avoid interference, it reduces the risk of connection drops that could cause flight or landing issues. Environmental and Operational Alerts The DJI Dock 3 provides real-time system monitoring and alerts for temperature, charging status, and operational anomalies. Operators are promptly informed of any potential risks, allowing preventive action before minor issues become serious problems.

Fully Autonomous Drone Hub The DJI Dock 3 is more than just a charging station—it is a fully autonomous drone hub. From precise RTK-guided takeoffs and landings to automated charging and mission management, the dock enables drones to operate independently without constant human supervision, making it ideal for industrial, inspection, or survey missions. Rapid Drone Deployment With fast charging capabilities—charging a drone from 15% to 95% in just 27 minutes—the dock minimizes downtime between missions. This ensures your drones are mission-ready at all times, significantly increasing operational efficiency for professionals who rely on consistent aerial coverage. Robust and Weather-Resistant Construction Designed for tough environments, the DJI Dock 3 can withstand temperature ranges from -30° to 50° C (-22° to 122° F) and harsh weather conditions thanks to its IP56-rated enclosure. This durability protects both your drone and dock, ensuring reliable performance in all operational scenarios. High-Precision and Safe Operations The combination of RTK positioning, maximum wind resistance of 12 m/s, and maximum operating altitude of 4500 m ensures drones land and take off safely, even in challenging conditions. Professionals can rely on the dock for accurate, repeatable, and secure drone operations every time. Intelligent Communication System With 9 built-in antennas and multi-band support (2.4 GHz, 5.2 GHz, 5.8 GHz), the dock guarantees stable video transmission and seamless data link switching. This enables real-time monitoring and reduces the risk of signal loss, ensuring mission-critical data is never interrupted. Optimized for Matrice 4 Series Drones Specifically designed for Matrice 4TD/4D, 4T/4E models, the dock offers seamless integration, ensuring compatibility and maximizing the drone’s operational efficiency. You do not need additional modifications or adapters—simply dock your drone, and the system takes care of the rest. Continuous Mission Capability The backup power system, intelligent temperature control, and automated sequential charging of drones allow operations to continue without interruption, even during power failures or extreme environmental conditions. This reliability is especially critical for time-sensitive industrial or inspection missions. Future-Proof and Scalable The DJI Dock 3 is a professional-grade solution that can scale with your drone operations. Whether managing a single drone or expanding a fleet of Matrice 4 series drones, the dock provides consistent, high-performance autonomy for years to come.
