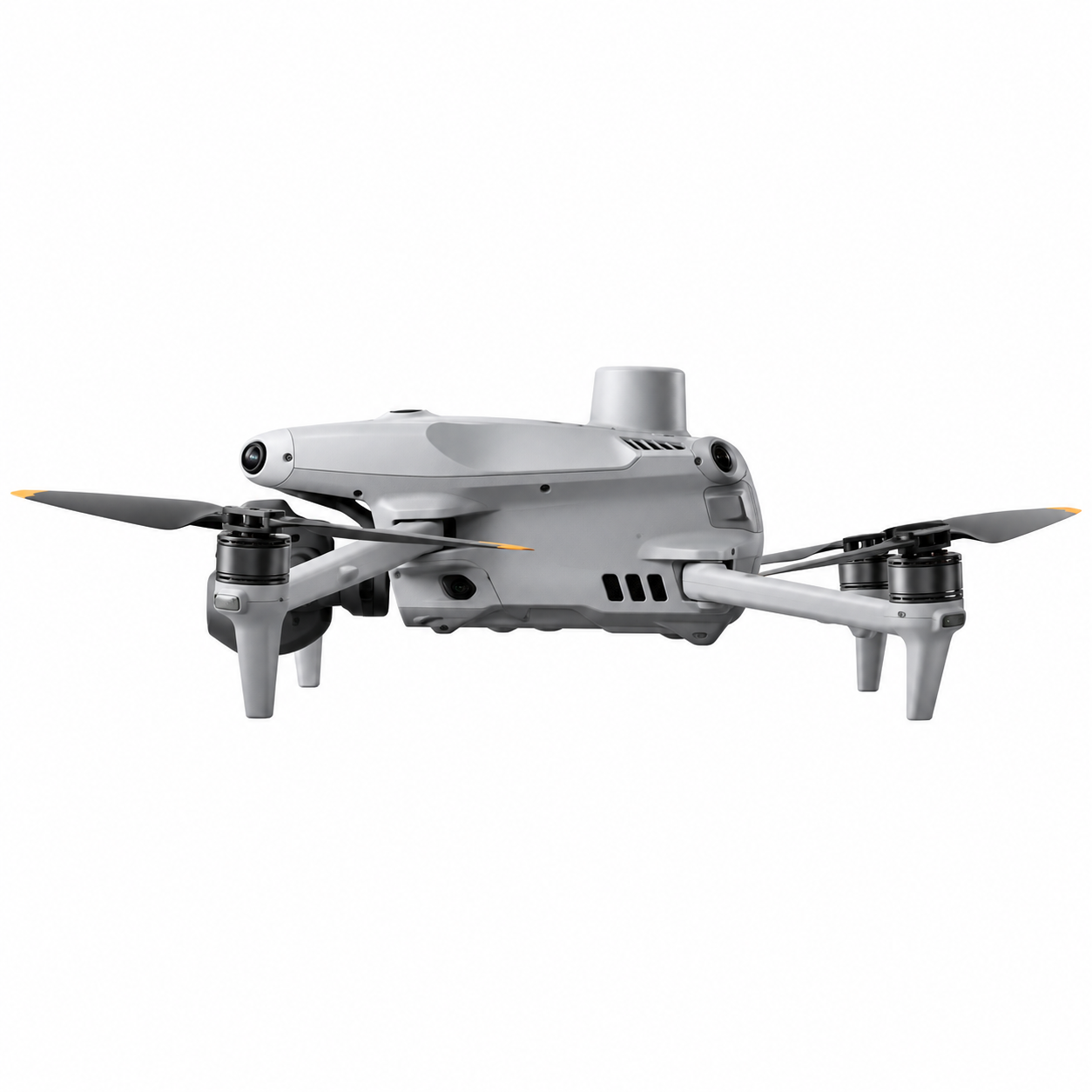

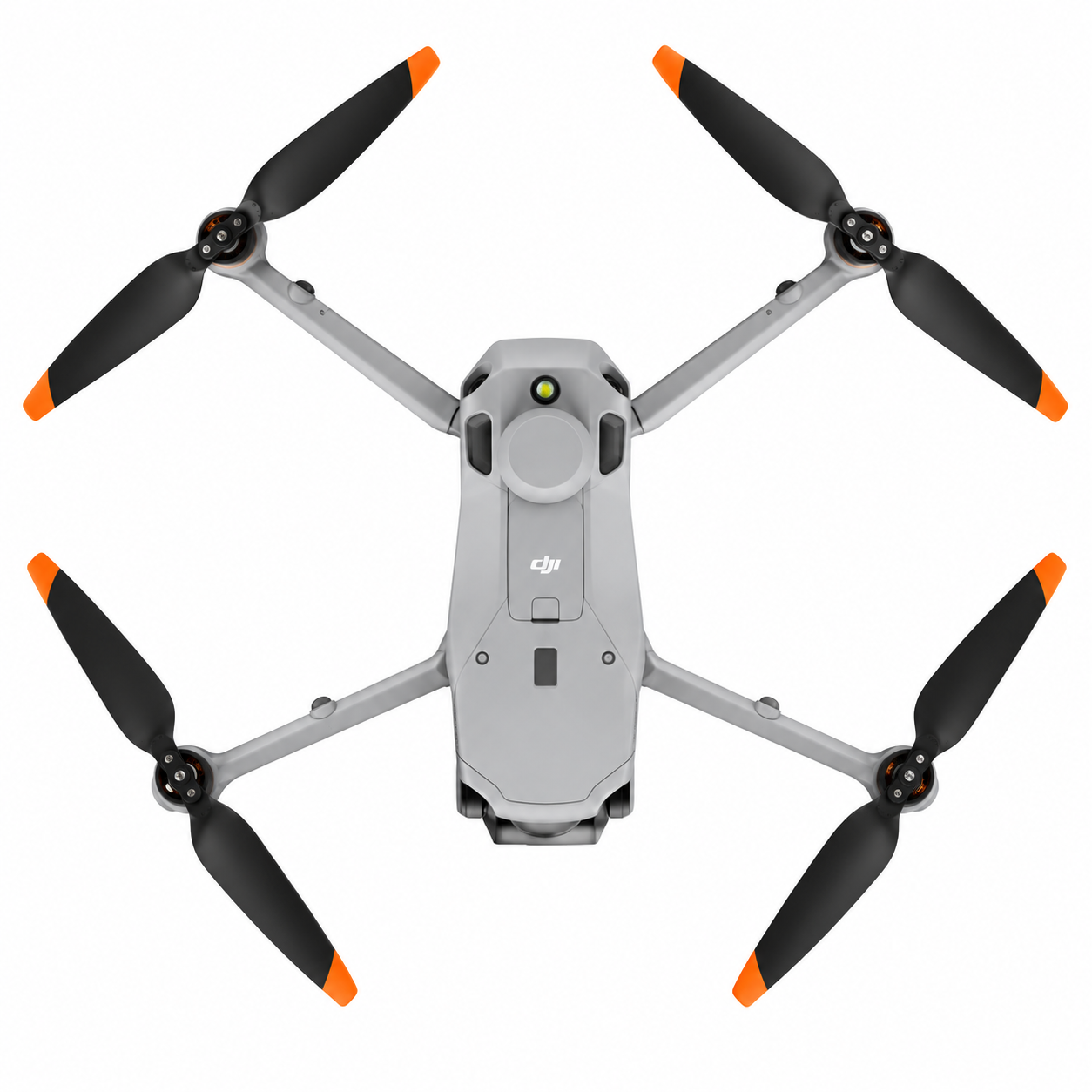

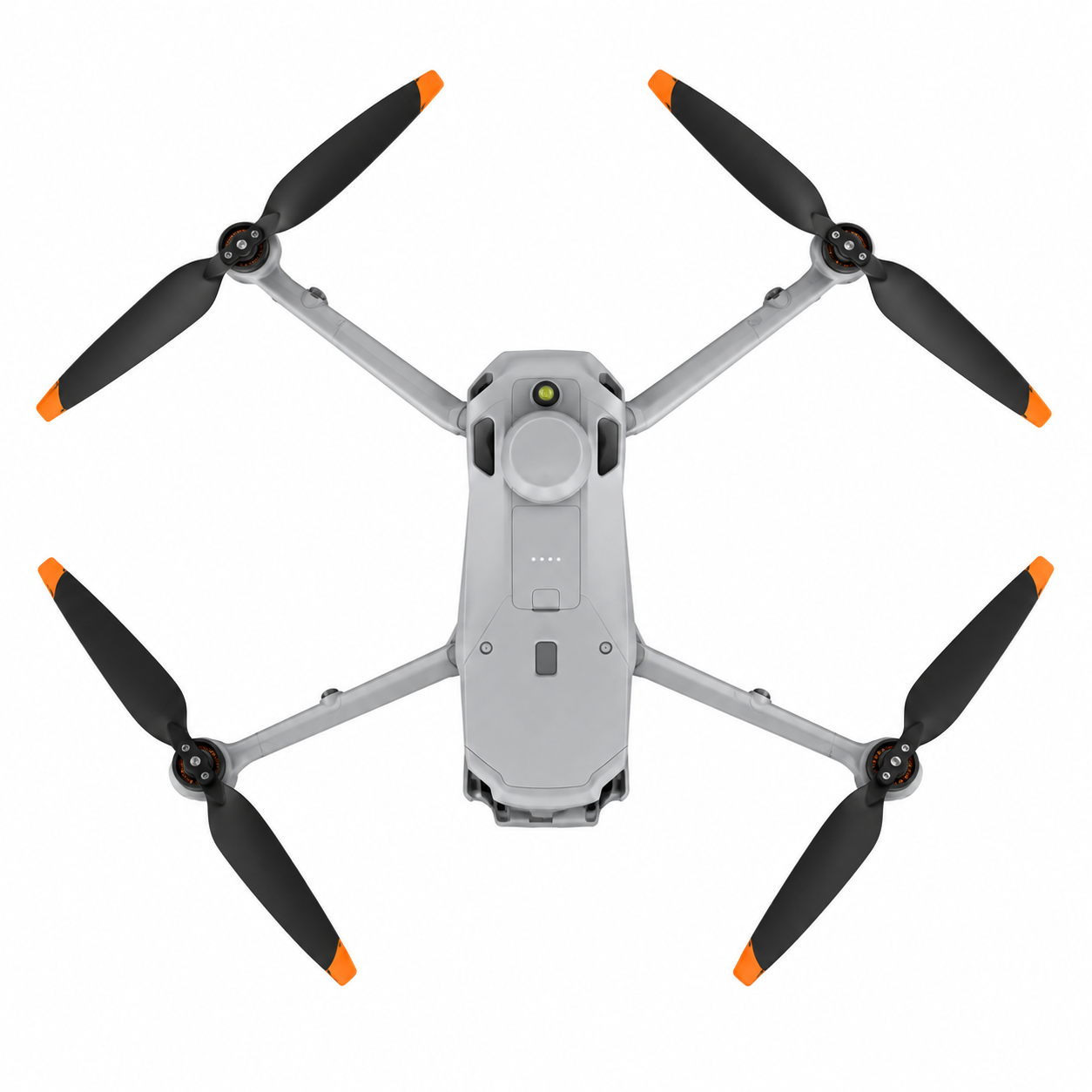

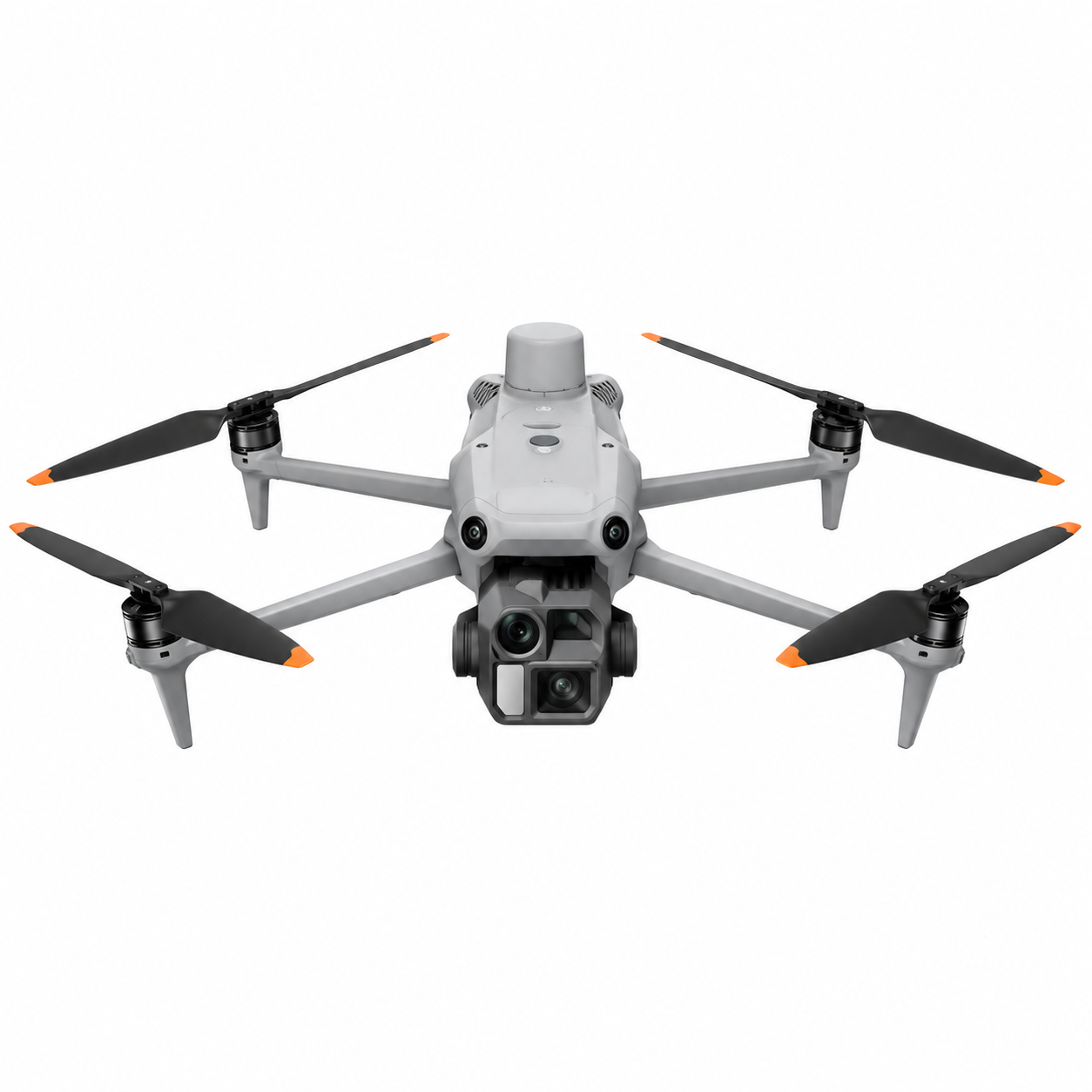

DJI Matrice 4E

• Takeoff Weight: Approx. 1229 g (with low-noise propellers)
• Max Takeoff Weight: 1430 g
• Folded Size: 260.6 × 113.7 × 138.4 mm
• Unfolded Size: 307.0 × 387.5 × 149.5 mm
• Max Payload Capacity: 200 g
• Propeller Size: 10.8 inch
• Flight Time: Up to 49 mins (no wind)
• Max Flight Distance: 35 km
• Max Speed: 21 m/s
• Max Altitude: 6000 m
• Wind Resistance: Up to 12 m/s
• Operating Temperature Range: -10°C to 40°C
• Infrared Camera: 640×512 resolution, 30Hz, 12μm pixel pitch
• Thermal Sensitivity: ≤50mk@F1.0
• Thermal Temperature Range: -20°C to 550°C
• Laser Rangefinder: Range up to 1800 m
• Zoom Capabilities: 16x Optical + 112x Hybrid (Visual), 28x (Thermal)
• Gimbal: 3-axis mechanical (tilt, roll, pan)
• Obstacle Avoidance: Omnidirectional + 3D infrared sensing
• Storage Support: microSD (U3/Class10/V30 or above)

DJI Matrice 4E Drone – Compact Thermal Inspection UAV with Hybrid Zoom, Laser Rangefinder & Omnidirectional Sensing

The DJI Matrice 4E is a next-generation enterprise drone engineered for professionals who demand precision, endurance, and versatility in the field. Purpose-built for industries such as surveying, mapping, infrastructure inspection, public safety, and agriculture, the Matrice 4E combines an advanced triple-camera imaging system with robust flight performance to deliver reliable results in even the most demanding environments.

At the heart of the Matrice 4E is its sophisticated payload: a 4/3-inch 20MP wide camera, a 1/1.3-inch 48MP medium-tele camera, and a 1/1.5-inch 48MP telephoto camera, all mounted on a stabilized 3-axis mechanical gimbal. Together, these sensors offer up to 16x optical zoom and 112x hybrid zoom, allowing operators to capture crisp, detailed imagery of distant assets without compromising flight safety. A built-in infrared thermal camera, delivering 640×512 resolution at 30Hz with thermal sensitivity of ≤50mK@F1.0 and a temperature range of -20°C to 550°C, extends the drone’s capabilities into thermal inspection, energy auditing, and search-and-rescue operations.

Precision positioning is another hallmark of the Matrice 4E. Equipped with multi-constellation GNSS support (GPS, Galileo, BeiDou, and GLONASS) and optional RTK functionality, the drone achieves horizontal accuracy of 1 cm + 1 ppm, making it a dependable tool for high-accuracy mapping and land surveying. An integrated laser rangefinder with a range of up to 1800 m further enhances measurement accuracy and object detection at long distances.

Built for extended missions, the Matrice 4E delivers up to 49 minutes of flight time and a maximum flight distance of 35 km on a single charge, all while weighing approximately 1229 g in its ready-to-fly configuration. Its foldable design (260.6 × 113.7 × 138.4 mm folded) makes it easy to transport between job sites, while omnidirectional obstacle sensing and 3D infrared detection ensure safe navigation around structures, vegetation, and other obstacles. The drone is rated to operate in temperatures from -10°C to 40°C and can withstand wind speeds of up to 12 m/s, making it suitable for use across a wide range of field conditions.

Why Choose the DJI Matrice 4E

• Triple-camera precision: Wide, medium-tele, and telephoto sensors combine with 112x hybrid zoom for detailed imaging from a safe distance.
• Advanced thermal imaging: Built-in radiometric thermal camera supports inspection, energy audits, and search-and-rescue missions in low-visibility conditions.
• Survey-grade accuracy: RTK-enabled GNSS positioning delivers centimeter-level accuracy for mapping, surveying, and GIS workflows.
• Extended endurance: Up to 49 minutes of flight time and 35 km range reduce battery swaps and maximize coverage per mission.
• Robust safety systems: Omnidirectional obstacle avoidance and 3D infrared sensing help protect the aircraft during complex operations.
• Field-ready design: A rugged, foldable airframe rated for -10°C to 40°C operation and winds up to 12 m/s ensures reliable performance outdoors.
• Scalable ecosystem: Compatible with the DJI RC Plus 2 Enterprise controller, AL1 Spotlight, AS1 Speaker, and RTK modules to match diverse enterprise needs.

Whether deployed for infrastructure inspection, precision agriculture, public safety operations, or large-scale mapping projects, the DJI Matrice 4E offers the imaging power, positioning accuracy, and flight endurance that enterprise teams need to work faster, safer, and with greater confidence in the field.
