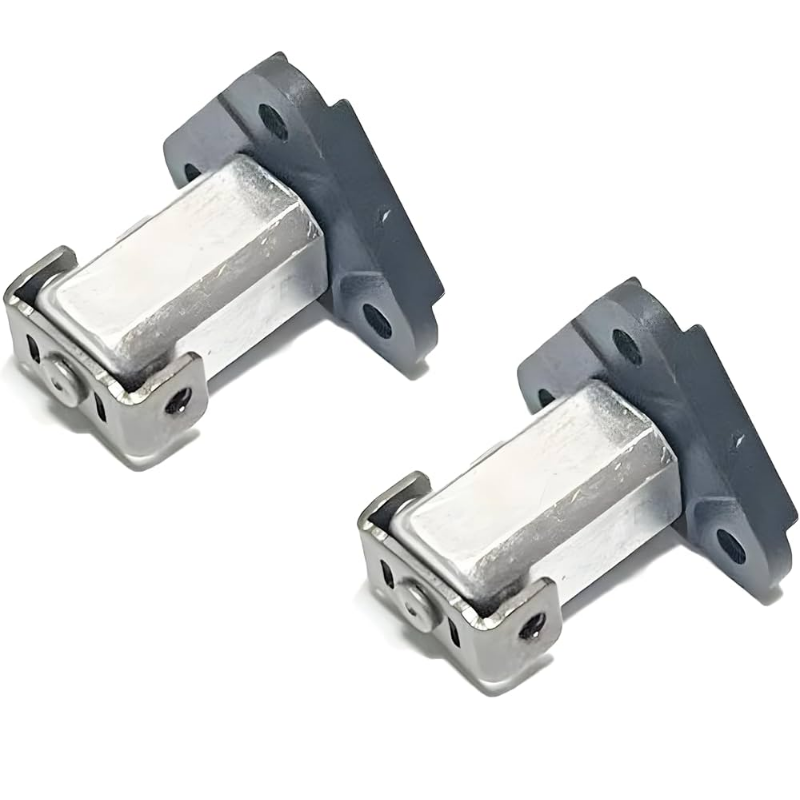

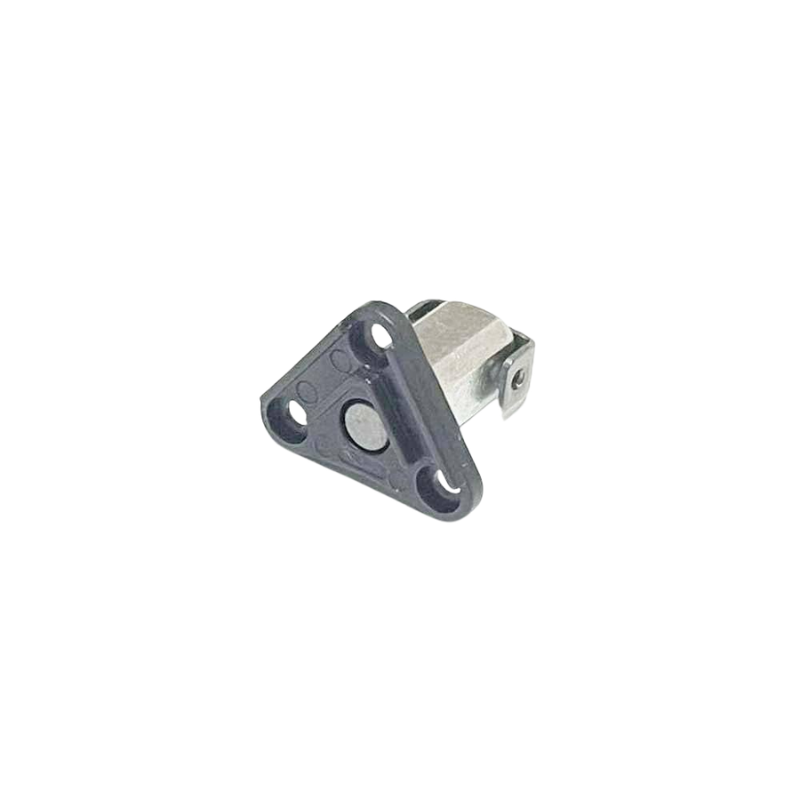

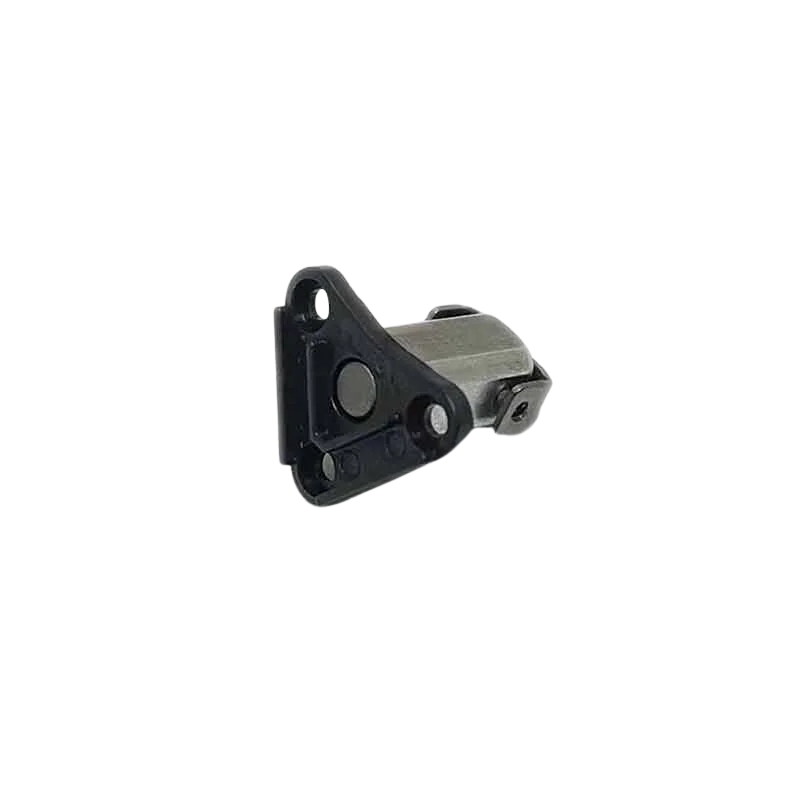

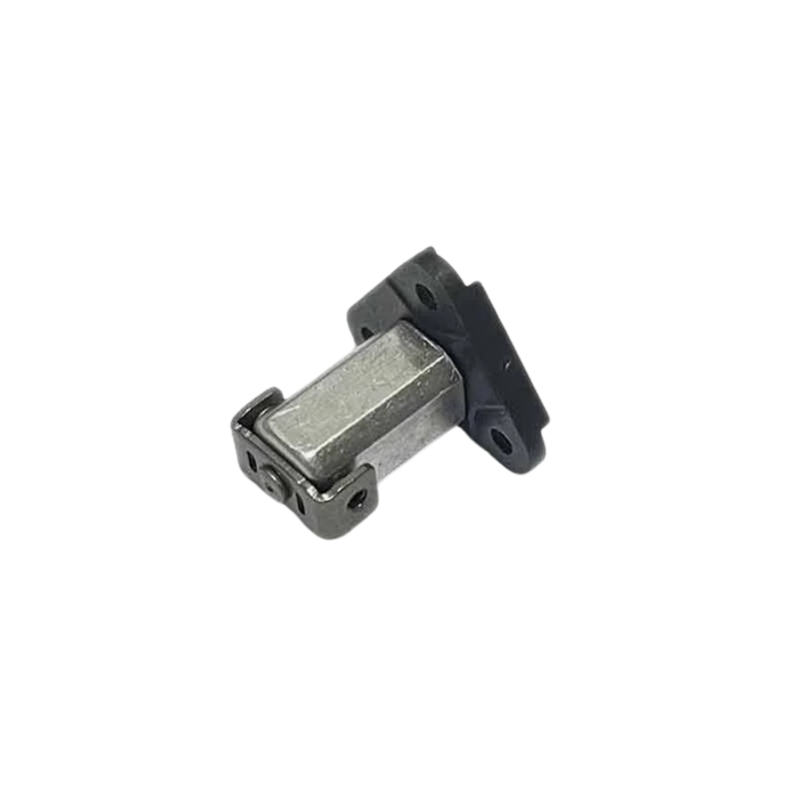

Front Arm Hinge Shaft for DJI Mini 4 Pro, DJI Mini 3

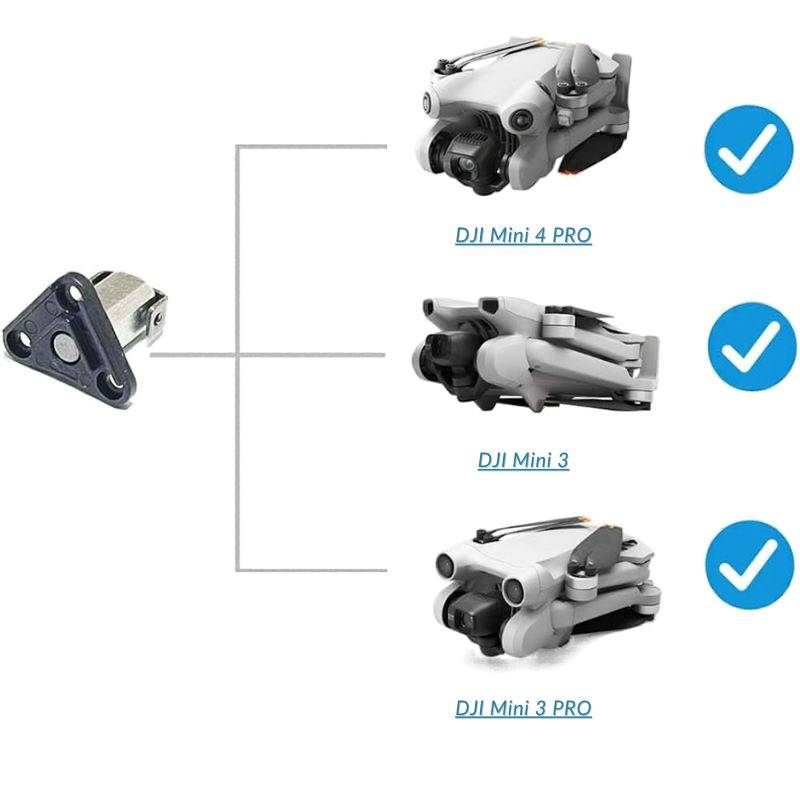

• Compatible with: DJI Mini 4 Pro and DJI Mini 3
• Product Type: Front arm hinge shaft (pivot pin)
• Function: Allows folding/unfolding of the drone’s front arms
• Material: High-strength stainless steel or hardened alloy
• Installation: Requires partial disassembly of the drone arm mechanism
• Use Case: Replacement for bent, broken, or loose hinge shafts
• Condition: Original DJI OEM part

The Tiny Pin That Lets Your Drone Fold Like a Pro (Instead of Flopping Like a Toy)

The Front Arm Hinge Shaft is the small-but-mighty metal rod that gives your DJI Mini 4 Pro or Mini 3 the ability to fold, lock, and fly without a wobbly wing drama. It’s the central part that connects the front motor arms to the drone’s main body, letting the arms swing in and out smoothly. If your drone’s front arm feels loose, bends too easily, or refuses to stay in its open position, there’s a good chance this little hinge shaft is either bent, missing, or worn out. Replacing it brings back the tight, firm feel of a fresh-out-of-the-box drone.

Key Features

Compatible with DJI Mini 4 Pro and DJI Mini 3 Front Arms

This hinge shaft is engineered specifically for the front arm mechanism of DJI Mini 4 Pro and Mini 3. It matches the exact length, diameter, and groove positioning needed to restore folding function without any adjustments. You won’t need to trim, file, or pray—it fits right where it’s supposed to.

Provides Smooth Arm Folding and Locking Action

The shaft acts like a hinge pin, allowing the front arms to rotate outward for flight and fold inward for storage. A worn or bent shaft can cause jittery arms or uneven folding. With a new one, the arms lock confidently into place, making your drone flight-ready in seconds.

Durable Metal Construction for Long-Term Use

Crafted from hardened stainless steel, this hinge shaft can withstand daily folding, landing vibrations, and even the occasional crash impact. It won’t rust, bend easily, or wear out with use, keeping your drone’s structure strong and stable over time.

Fixes Wobble, Looseness, or Crooked Arm Problems

If your drone’s arm droops or wiggles when you pick it up, the problem may not be the arm—it’s likely the hinge. This shaft restores a tight fit between the folding arm and body, eliminating sloppy movement and giving you back the firm hold your drone was built to have.

Ideal for DIY Repairs After a Crash or Arm Replacement

Whether you’re rebuilding your drone or just replacing a cracked arm, this part is a must-have during repairs. It’s one of those tiny parts you don’t think about—until it’s gone. Save your old motor, swap in a new arm shell, and slide this shaft through to complete the job.

How to Use

1. Turn Off Drone and Remove the Battery: Safety always comes first.
2. Disassemble the Drone Arm Area with Precision Tools: Access the arm hinge assembly.
3. Remove Old or Damaged Shaft: Gently push it out with a pin tool or tweezers.
4. Align the Arm and Insert the New Shaft: Slide it straight through the hinge holes.
5. Secure with Retainer if Needed and Test Arm Movement: It should fold in and out smoothly.

How to Clean

1. Wipe with a Lint-Free Cloth Before Installation
2. Use a Soft Brush to Remove Any Metal Debris
3. Avoid Oiling or Greasing It – It’s not a bike chain
4. Inspect for Surface Rust if Stored Long-Term
5. Clean Shaft Hole Inside the Arm Before Reuse

How to Take Care

1. Avoid Forcing the Arm Closed During Cold Weather
2. Use a Gimbal Lock and Case While Travelling
3. Never Pick the Drone Up by Its Folding Arms
4. Inspect After Every Crash or Rough Landing
5. Replace Immediately If You Notice Play or Wobble

Do’s & Don’ts

Do’s:

• Match the correct front side—left and right matter
• Use ESD-safe tools during the repair
• Test movement before final assembly

Don’ts:

• Don’t hammer it in—gentle pressure only
• Don’t re-use a bent or rusty shaft
• Don’t mix with rear hinge shafts—they’re not the same size

Safety Tips

1. Wear Eye Protection During Pin Removal (Just in Case)
2. Use a Pin Tool or Precision Tweezers
3. Secure the Arm in Place Before Reassembly
4. Test Arm Movement Before Powering the Drone
5. Store Spare Shafts in a Zip Pouch to Avoid Loss

Final Take

The Front Arm Hinge Shaft for DJI Mini 4 Pro / DJI Mini 3 may be one of the smallest parts in your drone, but its job is huge. Without it, your drone’s arms flop, your flight becomes unstable, and your folding design becomes useless. With it, your drone folds confidently, flies straight, and looks sharp while doing it.

Order now and give your Mini the firm, foldable structure it was born to have—because no drone should fly with floppy arms.
